Installation

Blender 4.2 introduces a new system where add-ons are referred to as extensions. Here’s how you can easily install them:

Method 1: Drag and Drop Installation

  1. Download the extension as a .zip file.
  2. Open Blender 4.2.
  3. Simply drag and drop the .zip file into the Blender viewport.
  4. Blender will automatically install the extension, and it will appear in the Get Extensions tab under Preferences.

Method 2: Installation via Preferences

  1. Open Blender 4.2.
  2. Go to the Edit menu and select Preferences.
  3. In the Preferences window, navigate to the Get Extensions tab located on the left side.
  4. Use the drop-down menu in the top right corner and select Install from Disk.
  5. Browse and select the .zip file of the extension you want to install.
  6. Once installed, the extension will appear in the list under the Get Extensions tab.

For more detailed information, you can refer to the official Blender guide for extensions.

OCD Interface

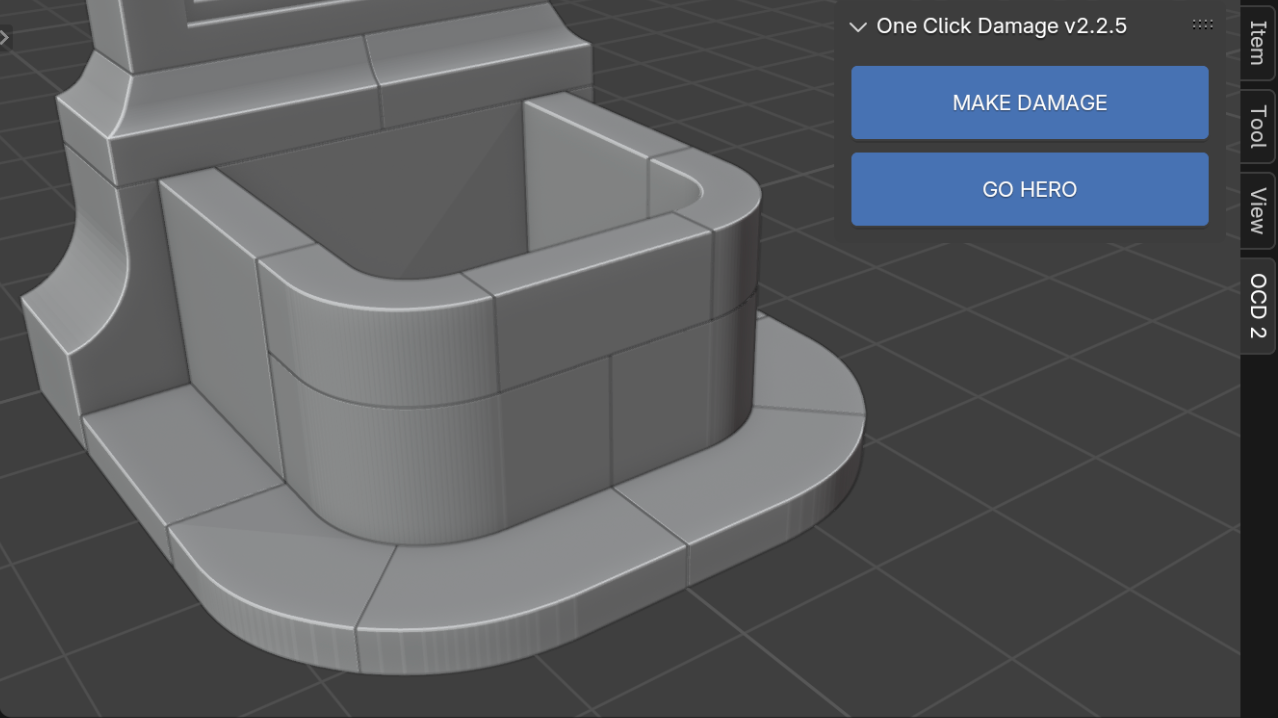

To access the OCD add-on's user interface, press N on your keyboard. This will activate the N-panel in Blender where you can find the OCD 2 tab.

OCD n-panel

To damage an object using the OCD add-on, select the object and click Make Damage.

Note

You can click on Make Damage multiple times. Each time, it will add another modifier (layer) with its own parameters.

Make Damage

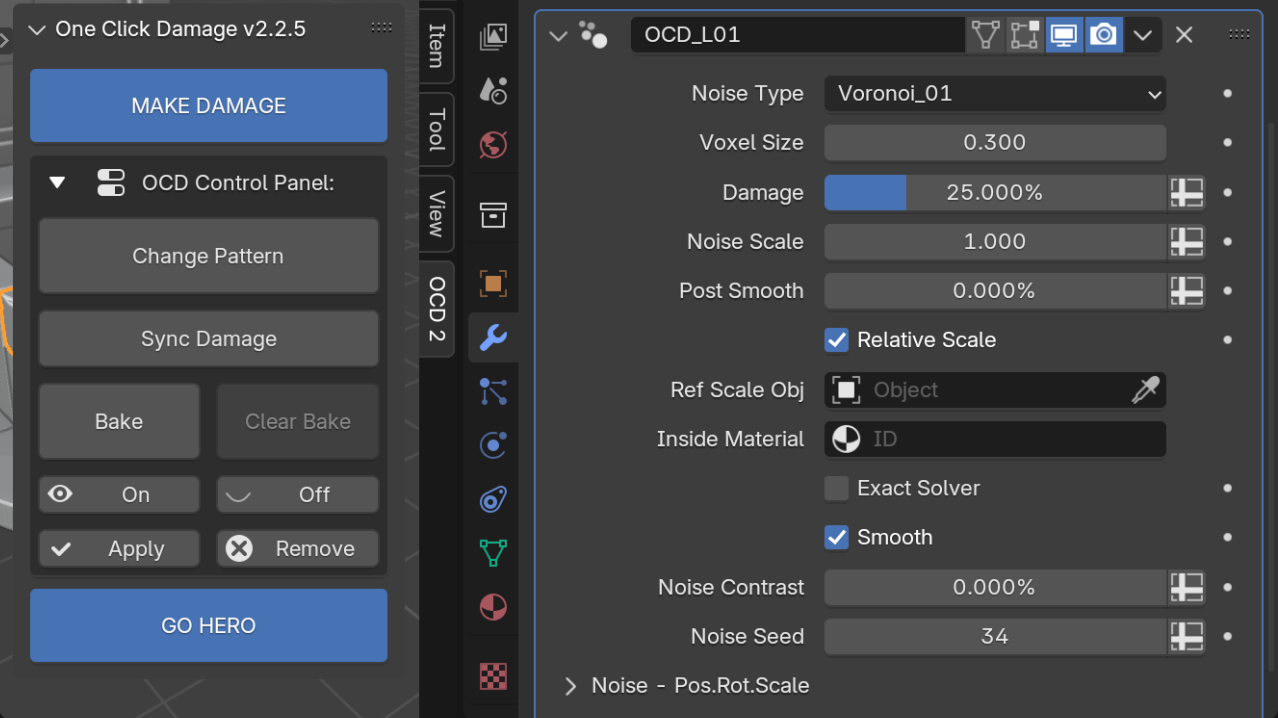

When you click on Make Damage with the object(s) selected, an additional OCD Control Panel will appear, along with a new Modifier in the Modifiers tab. This Modifier includes several parameters that allow you to tweak the damage to your liking.

OCD UI

Warning

To use OCD, the object should be "watertight," meaning it must not have any open polygons. For thin or long objects, it is recommended to use a Reference Scale Object. Scale should be applied.
